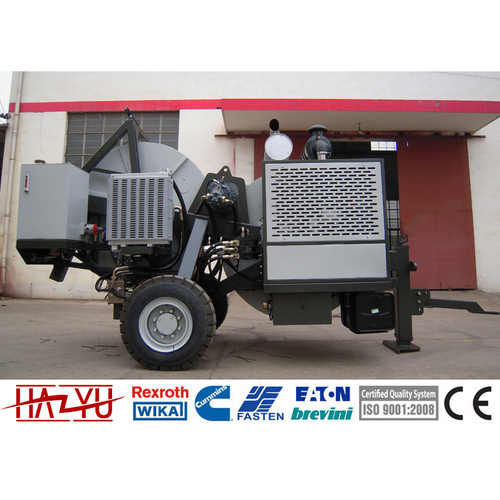

TY2x50 Stringing Equipment Tension Machine For Overhead Stringing

The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

• Bull-wheel diameter: 1300/1500mm
• Max conductor diameter: 40mm
• Groove number: 2x5
• Total weight: 6000kg
• Overall dimension (length*width*height): 4700*2300*2700mm

• Max intermittent pull: 2x55kN
• Max continuous pull: 2x50kN
• Speed at max pull: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 2x25kN
• Max reverse pulling force: 2*45kN
• Max reverse pulling speed: 5km/h

• Engine: Cummins
• Hydraulic pump: German Rexroth/Dnish Danfoss
• Main motor:German Rexroth/French Leduc
• Speed reducer: German Rexroth
• Hydraulic meter: German WIKA
• Operating handle: German Rexroth

• Diesel: 77kw(103hp)
• Cooling system: water
• Electrical system: 24V
• Hydraulic Transmission
• The machine can realize step less speed.
• The machine is provided with tension presetting system.

• 2 hydraulic dynamometers
• Hydraulic oil cooling system
• 2 digital meter counters
• 2 digital speed meters
• Control instruments for hydraulic system and diesel engine
• Hydraulic front stabilizer
• Grounding connection point
• Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor.

• Lighting system for the trailer
• Air brake system for the trailer(extra charge)
• 2 hydraulic conductor clamps for drum change operations (extra charge)
• Digital speed and meter counter
